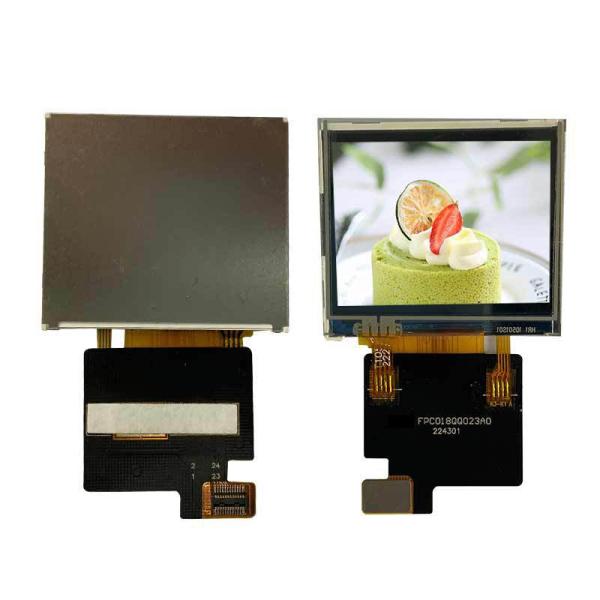

ESHX18QQ023A is 1.8 inch a color active matrix transflective TFT module ,240x180 resolution and MCU interface , view angle is 8‘O Clock , driving IC ST7789V2, brightness is 210c/d, driving IC ST7789V2
A:Product Parameter
| Part No: | ESHX18QQ023A |
| display Mode | 1.8 inch transflective TFT |
| outline size(mm) | 40.77x36.2x3.2 |
| AA size(mm) | 36x27 |
| Display dots | 240*180 |
| View Angle | 8:00 clock |
| interface | MCU |
| Brightness | 210c/d |
| working temp | -30~70 |
| storage temp | -40~80 |
| Driving IC | ST7789V2 |
B:Product Picture
C: Drawing
D: TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
